Specifications



BrandEpson

ModelEH-TW8300

Display Technology RGB liquid crystal shutter

Brightness 2,500 ANSI Lumens

Resolution1080p

Contrast Ratio 1,000,000:1

Aspect Ratio 16:9

Screen Size 50 - 300"

Lamp Wattage250W UHE

Lamp Life3,500 Hours

LensOptical Zoom (Manual) / Focus (Manual)

 F-Number: 2.0 - 3.0

 Focal Length: 22.5 - 46.7 mm

 Zoom Ratio: 1 - 2.1

 Throw Ratio: 1.35 - 2.84 (Wide - Tele)

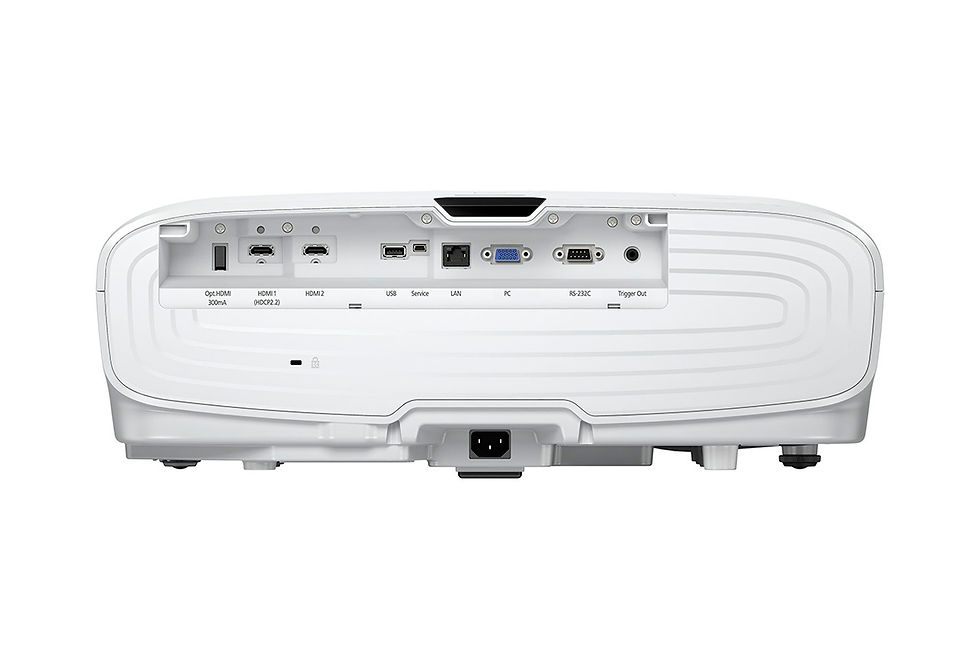

Connections

NetworkWired LAN: RJ45 x 1

Analog RGB InputD-Sub 15pin: 1 (Blue)

Digital InputHDMI: HDMI x 2 (HDCP supported)

 HDMI (Wireless HD): Yes (4K x 2K)

USB InterfaceUSB Type A: 2 (1 port for Firmware update and

 Wireless LAN, The other port for Opt. HDMI cable)

 USB Type B: 1 mini-USB (for service and Firmware update)

Control I/ORS-232C: D-Sub 9-pin x 1

 Trigger-Out (12V): 3.5mm Mini-jack x 1

WirelessIEEE 802.11b: 11 Mbps

 IEEE 802.11g: 54 Mbps
IEEE 802.11n: 130 Mbps

Wireless LAN SecurityWPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES)



Dimensions (W x H x D)520 x 170 x 450 mm

Weight11.0 kg

Noise Level31dB

Power Supply100 - 240 V AC °±10%, 50/60 Hz

Power Consumption355 W



Warrantyตัวเครื่อง 2 ปี หลอดภาพ 1 ปี หรือ 1,000 ชม.
