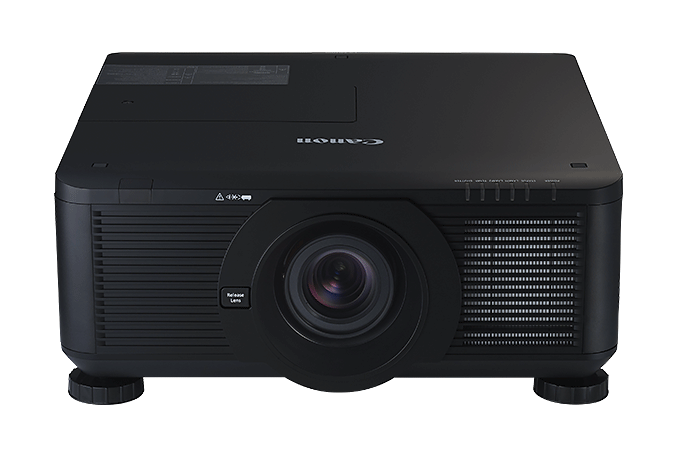

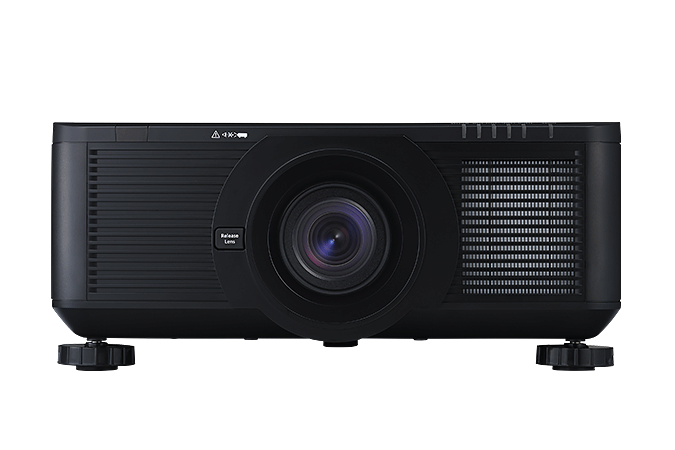

Canon LX-MU700

The all-new LX-MU700 projects unparalleled brightness of 7500 Lumens from a dual lamp system. Delivering true-to-life quality, its WUXGA resolution surpasses the Full HD benchmark. The leading DLP® technology enables sharp, long-lasting and precise colour images, designed to exceed the needs of every large venue of any purpose.

• WUXGA (1920 x 1200 พิกเซล)

• Dual lamp system for brightness of 7500 lumens

• Compatible with 7 different projector lenses

• ​

Specifications



BrandCanon

ModelLX-MU700

Display Technology 1-Chip DLP™

Brightness 7,500 ANSI Lumens

Resolution1920 x 1200 (WUXGA)

Contrast Ratio 2,100:1

Aspect Ratio 16:10

Screen size50 – 300"

Light sourceSuper-high pressure mercury lamp 350W x 2

LensManual Zoom/Focus 1.6x
f = 15.75 – 25.1mm / F = 2.45 – 3.07



CompatibilityDigital PC : WUXGA (RB) / WSXGA+ / UXGA / SXGA+ / WXGA+ / WXGA / SXGA / XGA / SVGA / VGA

 Analog PC : WUXGA (RB) / WSXGA+ / UXGA / SXGA+ / WXGA+ / WXGA / SXGA / XGA / SVGA / VGA

 Digital video : 1080p / 1080i / 720p / 576p / 480p

 Component video : 1080p / 1080i / 720p / 576p / 480p / 576i / 480i

 HDBaseT :
From connected computers:
WUXGA (RB) / WSXGA+ / UXGA / SXGA+ / WXGA+ / WXGA / SXGA / XGA / SVGA / VGA
From connected AV equipment:
1080p / 1080i / 720p / 576p / 480p

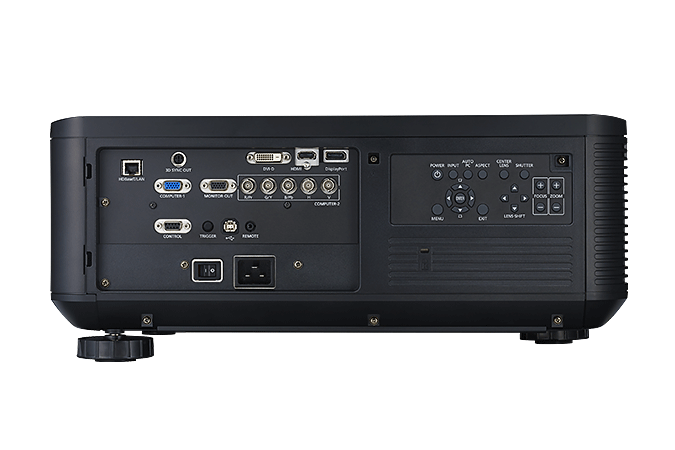

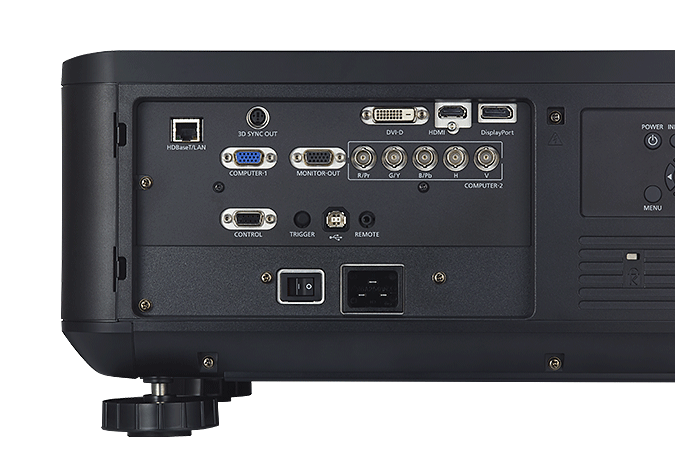

ConnectionsDigital PC / Digital video : HDMI

 Digital PC / Digital video : DVI-D

 Digital PC / Digital video : DisplayPort

 HDBaseT / Network : RJ45

 Analog PC / Component video : 5BNC

 Analog PC : Dsub15

 Analog PC : Dsub15 (output)

 RS-232 (serial communication) : Dsub9

 Connect to an PC for maintenance : USB type B

 Connect to a wired remote : Mini pin jack

 12V output : Mini pin jack

 3D IR synchronization output : 3D sync out



Dimensions (W X H X D)504 x 529 x 221 mm

Weight20.5 kg

Noise Level36dB

Power Supply100-240 V AC, 50/60 Hz

Power Consumption850 W



Warrantyตัวเครื่อง 2 ปี หลอดภาพ 1 ปี หรือ 1,000 ชม.
