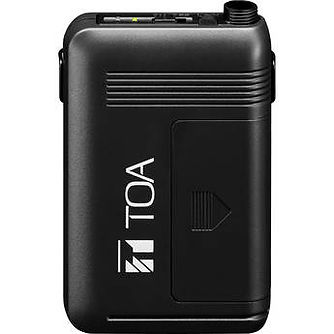

ยี่ห้อ : TOA
รุ่น : WM-5325
ราคา: 4,400 บาท
พิเศษ : 4,000 บาท
ไมโครโฟนไร้สาย Wireless Transmitter


ModulationFrequency modulation

Frequency Range576 - 932 MHz (*2), UHF

Channel Selectable64 channels (the number of channels may differ from country to country)

RF Carrier Power50 mW or less

Tone Frequency32.768 kHz

OscillatorPLL synthesized

Maximum Input Level-14 dB to -29 dB (*1) (Audio level control: Min. to Max.)

Maximum Deviation±40 kHz

Audio Frequency Response100 Hz - 15 kHz

BatteryWB-2000 (WB-2000-2 contains 2 pieces) rechargeable battery (option)
or AA alkaline dry cell battery

Battery LifeApprox. 13 h (when the WB-2000 rechargeable battery is used)
Approx. 10 h (when the alkaline battery is used)

IndicatorPower/Battery lamps

AntennaBuilt-in type

Connectorφ3.5 mm (φ0.14") mini plug

Operating Temperature-10 ℃ to +50 ℃ (14 ゜F to 122 ゜F) (except battery)

Operating Humidity30 % to 85 %RH (no condensation)

FinishResin, coating

Dimensions62 (W) × 102.5 (H) × 23 (D) mm (2.44" × 4.04" × 0.91")

Weight90 g (0.2 lb) (with battery)

AccessoryScrew driver …1, Storage case …1, Neck strap …1

OptionUnidirectional lavalier microphone: YP-M5300
Omnidirectional lavalier microphone: YP-M5310
Headset microphone: WH-4000A, WH-4000H
