Specifications



BrandEpson

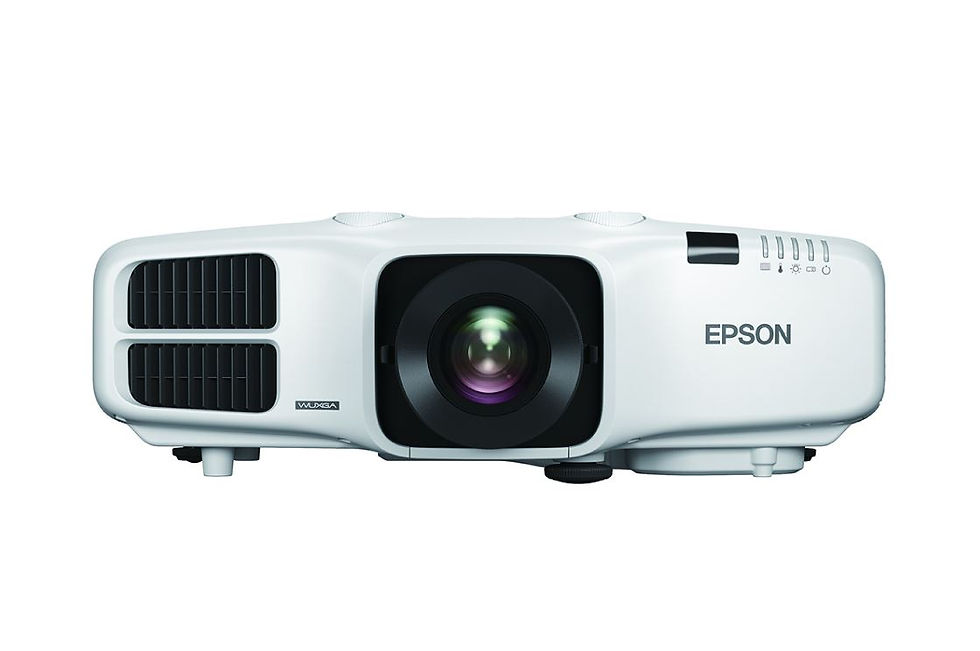

ModelEB-5530U

Display Technology 3LCD, 3-chip technology

Brightness 5,500 ANSI Lumens

Resolution1920 x 1200 (WUXGA)

Contrast Ratio 15,000:1

Aspect Ratio 16:10

Screen Size 30 -300"

Lamp Wattage300 W UHE

Lamp Life5,000 Hours

LensManual focus / zoom



F-Number: 1.65 – 2.55

 Focal Length: 21.34 mm – 37.99 mm

 Zoom Ratio: Optical zoom 1.0x – 1.8x

Keystone correctionH +/-30° , V +/- 30°



Connections

Interfaces

1x HDBaseT

 HDMI x 2 (1x MHL)

 Computer: D-sub 15 pin x 1

 Component Video: 1x BNC

 Audio-in: 2x Mini stereo

 Network: 1x RJ-45 100 Mbps

 Serial: 1x RS-232c

 USB: 1x Type A (for wireless module

 service

 firmware update

 clone settings)

 1x Type B (firmware update)

 1x Hardwire remote jack

 Monitor Out: 1x D-sub 15 pin

 1x Audio Out

Input Signal

NTSC/NTSC4.43/PAL/M-PAL/N-PAL/PAL60/

 SECAM/480i/576i/480p/576p/720p/1080i/1080p



Dimensions (W x D x H)216‎ x 353 x 157.5 mm

Weight6.9 kg

Noise Level38dB

Power Supply100 - 240 V AC °±10%, 50/60 Hz

Power Consumption462 W



Warrantyตัวเครื่อง 2 ปี หลอดภาพ 1 ปี หรือ 1,000 ชม.
