Canon XEED WUX500

Compact install high brightness model with WUXGA resolution

The XEED WUX500 is a compact install model featuring high resolution, high luminance and high contrast. These features, combined with an advanced Genuine Canon projection lens and Canon's proprietary LCOS technology with AISYS 5.0 helps to produce crisp, bright images with exceptional colour reproduction.

• Compact install

• Installation Convenience with 4-Point Keystone Correction and Manual Lens Shift

• 5000 Lumens, WUXGA resolution (1920 x 1200)

Specifications

BrandCanon

ModelWUX500

Display Technology RGB liquid crystal system

Brightness 5,000 ANSI Lumens

Resolution1920 x 1200 (WUXGA)

Contrast Ratio 2,000:1

Aspect Ratio 16:10

Screen size40 – 300"

Light source250-NSHA 260W

LensZoom: manual, Focus: manual
1.8x, f = 21.7 - 39.0mm, F2.8

Speaker5W monaural x 1

CompatibilityDigital PC : WUXGA / WSXGA+ / UXGA / WXGA+ / SXGA+ / SXGA / WXGA / XGA / SVGA / VGA

 Analog PC : WUXGA / WSXGA+ / UXGA / WXGA+ / SXGA+ / SXGA / WXGA / XGA / SVGA / VGA

 Component video : 1080PsF, 1080p, 1080i, 720p, 576i, 576p, 480i, 480p

 HDMI input :
From connected computers: WUXGA / WSXGA+ / UXGA / WXGA+ / SXGA+ / SXGA / WXGA / XGA / SVGA / VGA
From connected AV equipment: 1080p, 1080i, 720p, 576p, 480p

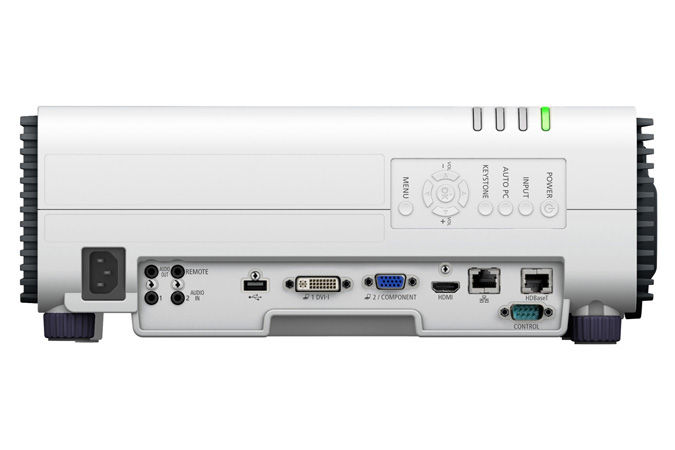

Connections

DVI-I IN terminalDigital PC (29-pin DVI connector) / Analog PC

HDMI IN terminalDigital PC / Digital Video HDMI (deep colour)

ANALOG PC / COMPONENT IN terminalAnalog PC, Component (mini D-sub 15-pin)

HDBaseT terminalRJ-45

LAN terminalNetworked multi-projection (RJ-45) 10BAST-T / 100BASE-T

USB terminalJPEG images (USB Mass Storage Class)

CONTROL terminalRS-232C (D-sub 9-pin)

REMOTE terminalWired remote control (3.5φ stereo mini jack)

AUDIO IN terminalAudio signal (3.5ø stereo mini jack x 2)

AUDIO OUT terminalAudio signal (3.5ø stereo mini jack)

Dimensions (W X H X D)337 x 370 x 136 mm

Weight5.9 kg

Noise Level37dB

Power Supply100-240 V AC, 50/60 Hz

Power Consumption365 W

Warrantyตัวเครื่อง 2 ปี หลอดภาพ 1 ปี หรือ 1,000 ชม.
