JBL 8124 ลำโพงติดเพดาน Ceiling แบบ Dual-Cone Full-Range สำหรับติดเพดาน ขนาด 4 นิ้ว ขับได้ 6W

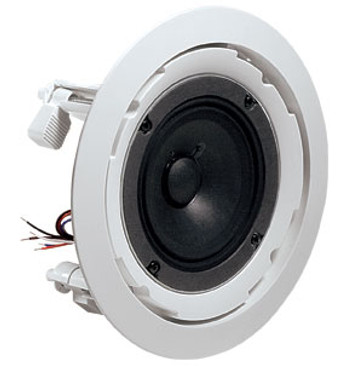

JBL 8124 4-inch, Full-range,In-Ceiling Loudspeaker

High-fidelity performance at a cost-effective price point, the 8100 Series is an easy to install loudspeaker solution for a wide variety of commercial sound applications. With two models in the line, the 8124, a 4-inch (100 mm) full-range loudspeaker and the 8128, an 8-inch (200 mm) full-range loudspeaker, the 8100 Series feature high sensitivity drivers that deliver maximum sound levels using minimal amplifier power. With its contemporary grill design, 70V/100V taps and open-back design, the 8100 series brings elegance and performance to basic commercial sound systems, or any application not requiring a backcan for installation.

8124 4-inch, Full-range, In-Ceiling Loudspeaker

The 8124 is a 4-inch, full-range, cost-effective loudspeaker for commercial applications. The 8124 features high-fidelity performance in an easy to install package. The system’s high sensitivity drivers deliver maximum sound levels using minimal amplifier power. With its contemporary grill design, 70V/100V taps and an open-back design, the 8100 series brings elegance and performance to basic commercial sound systems, or any application not requiring a backcan for installation.

FEATURES

• Clear, High-Fidelity Performance

• Dog-ears for easy Blind Mount Installations

• High Sensitivity (93 dB, 1W, 1m) for Maximum Power Efficiency

• 6W Transformer for use of 70V / 100V Distributed Lines

SPECIFICATIONS



• Component: 4" full range driver

• Frequency Range: 60 Hz – 18 kHz

• Sensitivity: 93 dB (1kHz – 8kHz), 1W, 1M

• Coverage: 130 degrees conical

• 70V/100V Taps: 6W, 3W, 1.5W (0.75W at 70V only)

• Termination: Bare wires

• Dimensions (Diameter x Depth): 8.1" x 3.5"

• Weight: 2.5 lbs.

• Included Accessories: Grille

• Optional Accessories: MTC-8124C C-ring, MTC- Rail tile rails
